Move Drawing, Handwriting and Ink with Image in OneNote

2019-11-24 00:18

In another document, we have described how to pin down drawing into text outline in OneNote.
In this document, we will show you how to move drawing, handwriting and ink with image.

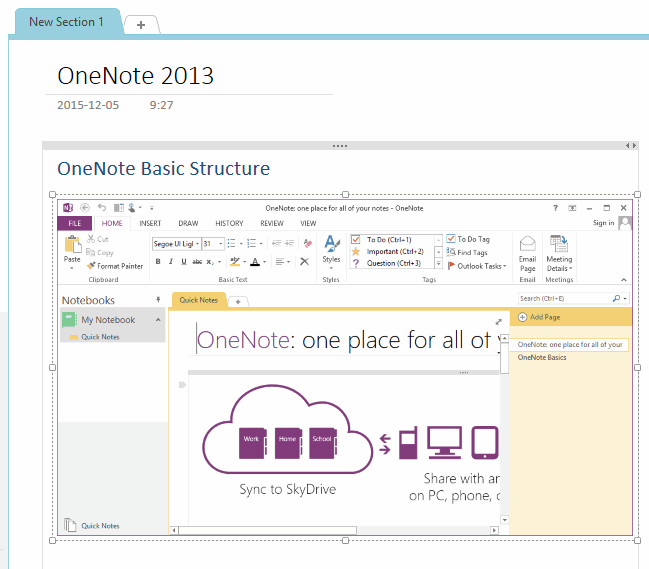

Image inside Outline
In this example, we can see the image saved inside text outline.
Image inside Outline
Image inside Outline

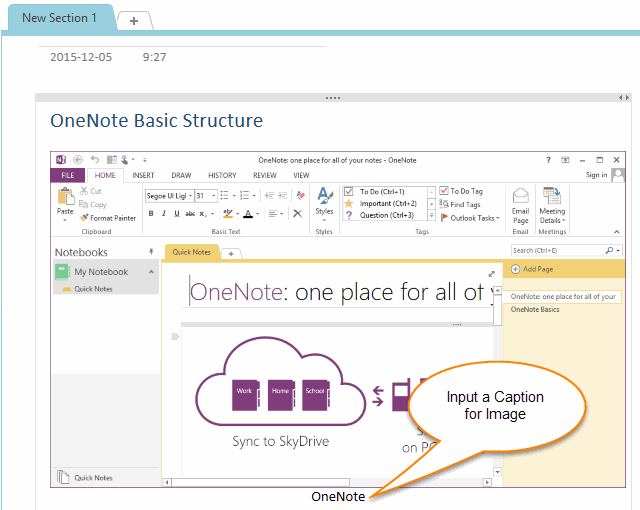

Insert Text Below the Image as Caption
To lock drawing with image, we need a text paragraph.
In this example, we insert text "OneNote" below the image as caption.
Insert Text Below the Image as Caption
Insert Text Below the Image as Caption

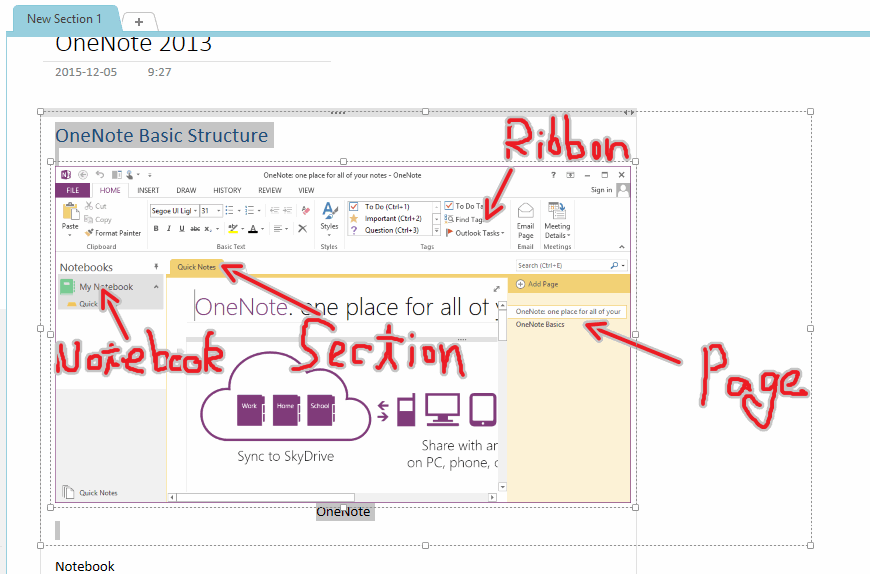

Draw and Hand Write on OneNote Image
Now, we can begin to draw and hand write on image.
After drawn, select all inks on image ( Maybe it will select some text ).
Draw and Hand write on OneNote Image
Draw and Hand write on OneNote Image

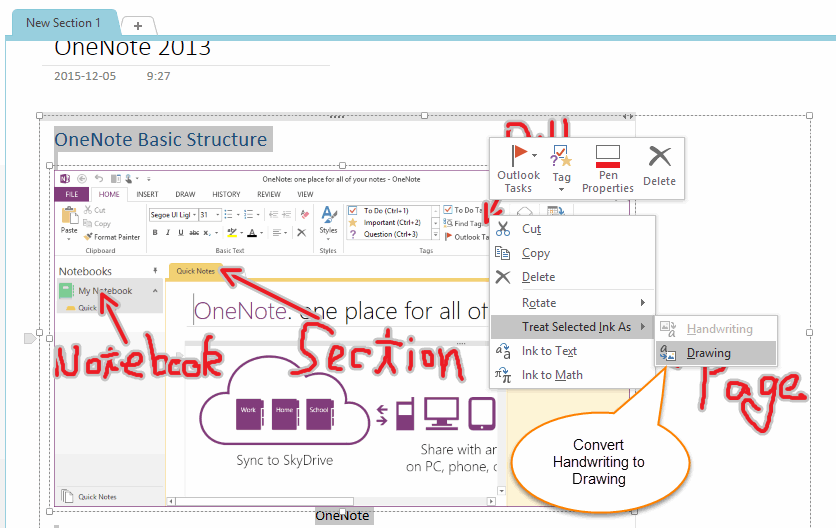

Convert Handwriting to Drawing
On image, maybe you have some handwriting, you need to convert them to drawing.
Right click on the selection, click "Drawing" sub-item in "Treat Selected Ink As" menu item, it will convert handwriting to drawing in the selection.
Convert Handwriting to Drawing
Convert Handwriting to Drawing

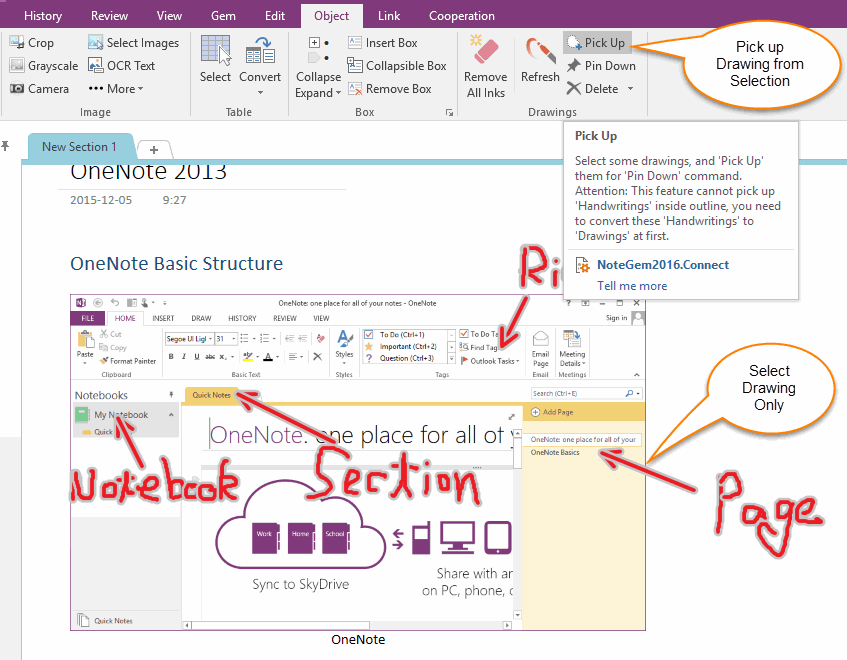

Using Gem Feature to Pick Up Drawings
You can use "Pick Up" feature to pick up these drawings in selection in Gem for OneNote.
Click "Object" tab -> "Drawings" group -> "Pick Up" feature,
Gem will pick out the drawings from selection.
Now, you can see the selection change to just select drawings.
Using Gem Feature to Pick Up Drawings
Using Gem Feature to Pick Up Drawings
Anchor Drawings to Caption
After pick up drawings,
  1. Now, we select "OneNote" caption to ready attach these drawings.
  2. Next, in "Gem for OneNote", click "Object" tab -> "Drawing" group -> "Pin Down" feature.

It will anchor these drawings to "OneNote" caption.
Anchor Drawings to Caption
Anchor Drawings to Caption

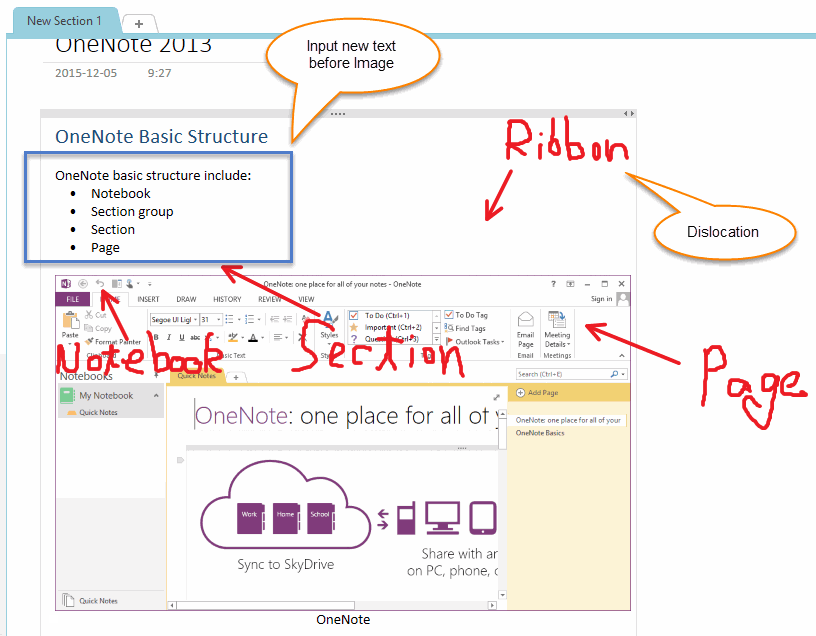

Drawing Dislocated with Image when Input New Text Before Image

When we insert new text before image, we will find that these drawings don't move down with image, OneNote place them in the original position.
This cause these drawings dislocated with image.
Drawing Dislocated with Image when Input New Text Before Image
Drawing Dislocated with Image when Input New Text Before Image

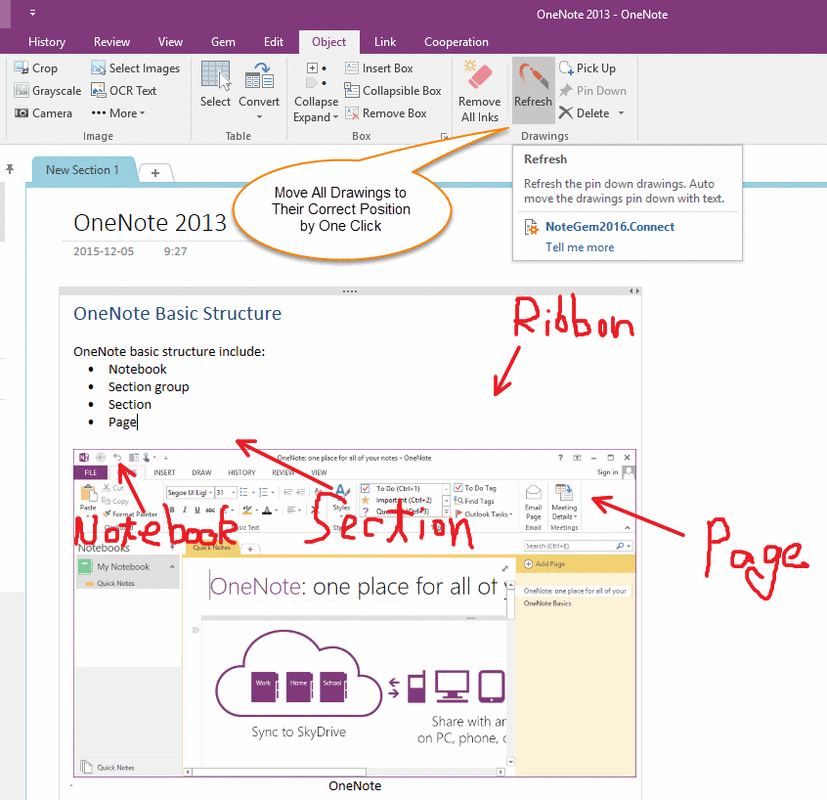

Move all Drawings to its Correctly Position by One Click
For these drawings which have pinned down,  we can move them to correctly position by One Click.
In "Gem for OneNote", Click "Object" tab -> "Drawing" group -> "Refresh" feature,
This feature will move all drawings ( Pinned down already ) in current page to correctly position.
Move all Drawings to its Correctly Position by One Click
Move all Drawings to its Correctly Position by One Click

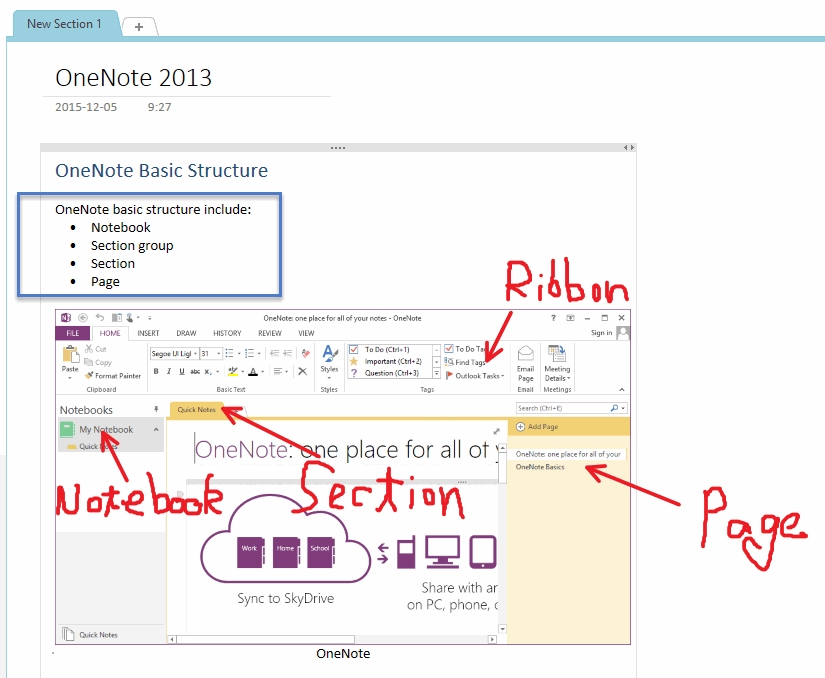

Move to Correctly Position
After click "Refresh" feature, we can see the drawings all go to its correctly position.
Move to Correctly Position
Move to Correctly Position

Download Gem for OneNote
